Elddis Affinity 574 2025
- Berth Capacity: Accommodates up to four people, suitable for couples, families, or friends.

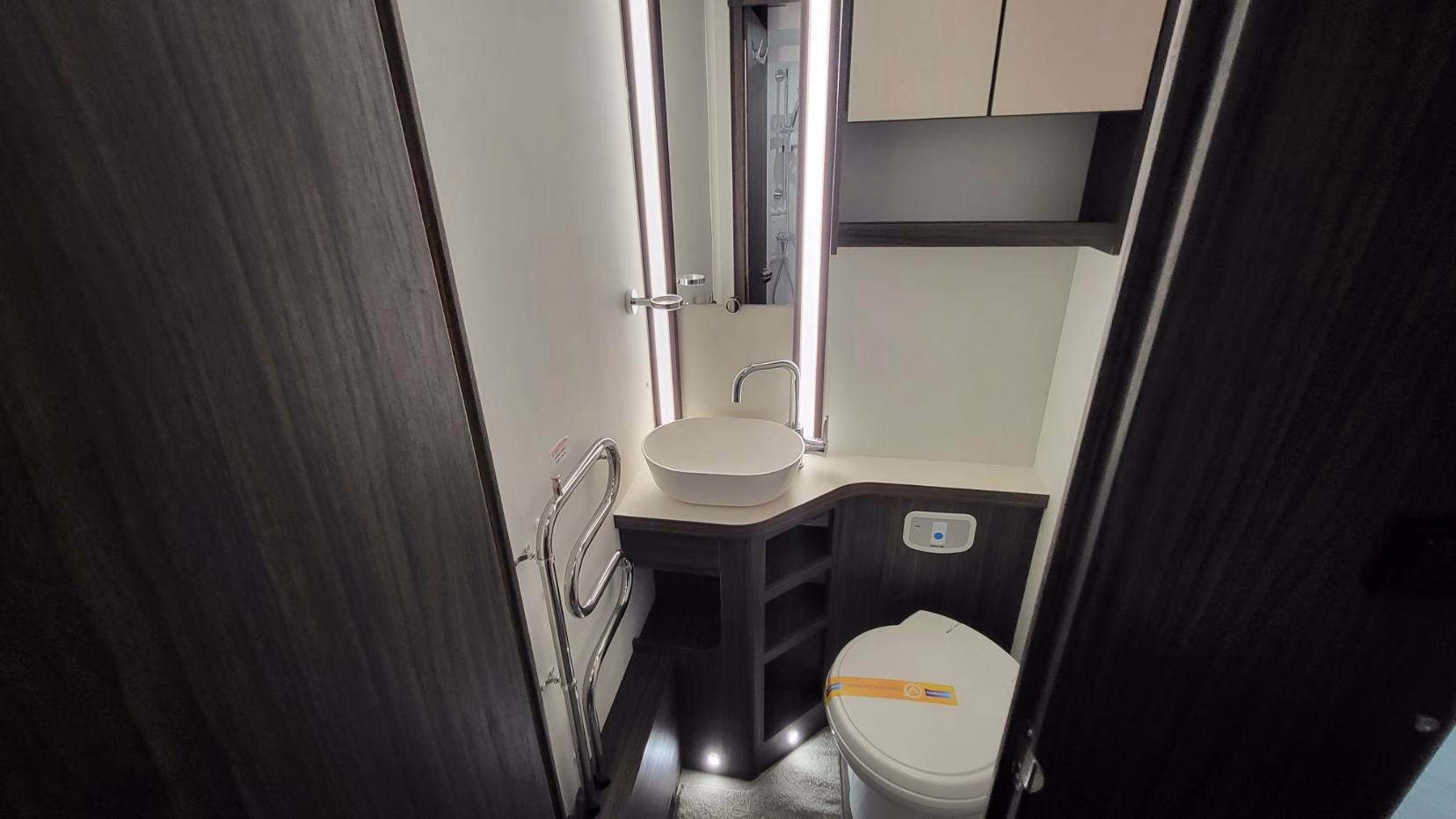

- Interior Layout: Features twin fixed single beds at the rear, a central washroom with separate shower cubicle, a well-equipped central kitchen, and a front lounge area that converts into a double bed. The washroom can be sectioned off to create an en-suite or used as a family bathroom.
- Dimensions:
- Interior Length: 5.600 meters (18’4″”)
- Exterior Body Length: 6.100 meters (20’0″”)
- Shipping Length: 7.200 meters (23’7″”)
- Overall Width: 2.260 meters (7’5″”)
- Overall Height: 2.650 meters (8’8″”)
- Weight Specifications:
- Mass in Running Order (MIRO): 1,316 kg
- Maximum Technically Permissible Laden Mass (MTPLM): 1,467 kg
- User Payload: 151 kg
- Sleeping Arrangements:
- Front Lounge: Converts to a double bed (1.127m x 1.992m)
- Rear Fixed Beds: Two single beds (0.700m x 1.855m)
- Kitchen Amenities: Equipped with a Thetford dual-fuel hob (three gas burners and an 800W electric hotplate), oven, grill, microwave, and a Dometic 3-way fridge with dual-opening doors and a separate freezer compartment.
- Heating System: Features the Alde 24-hour multi-programmable central and water heating system, running on gas, electric (up to 3.15kW), or both, with an easy-to-use LCD touchscreen control and automotive-standard Glycol G13 Antifreeze coolant.
- Entertainment Features: Includes an audio system and TV directional aerial, enhancing the onboard entertainment experience.
- Lighting and Ambience: Designed with modern aesthetics and equipped with LED lighting, creating a bright and welcoming environment.
- Exterior Design: Boasts new GRP Sunsation High Gloss White sides, offering extreme gloss and color resistance with superior UV protection.
- Additional Features: Options include the Pro Pack (heavy-duty corner steadies, AL-KO secure wheel lock, offside service awning light) and Connect+ Pack (solar panel, mobile Wi-Fi), allowing for customization to suit individual preferences.
