Coachman Travel Master 565 2027

Cab and Chassis

• Mercedes-Benz 170hp Sprinter engine with a 9-speed automatic gearbox, so gear changes are smooth whether you’re on the motorway or manoeuvring into a pitch
• 65-litre fuel tank and an AGM 92Ah leisure battery
• Electronic stability programme (ESP), anti-lock braking (ABS) and auto braking, working together to help you keep control if you need to stop or turn quickly
• Attention assist, crosswind assist, cruise control and a rain sensor, all designed to take some of the strain off you on longer drives
• Driver and passenger airbags, daytime running lights and headlight assist
• Electronic parking brake and electronic handbrake
• 16-inch alloy wheels with reinforced tyres to handle the extra weight a motorhome carries
• Integrated entrance side steps and cab air conditioning
• MBUX touchscreen infotainment with Bluetooth, DAB radio and satellite navigation built in
• MBUX integrated reversing camera, useful when you’re reversing onto a pitch with limited visibility
• Leather steering wheel with function controls, so you can adjust settings without taking your hands off the wheel
• Double armrests, height-adjustable and heated seats, with a swivel base so the cab seats turn to face the living area once you’ve parked up
• Electric windows and electric heated wing mirrors on extended arms, useful for towing sightlines
• A cup holder for the road

External Features

• Balanced aluminium side wall and roof construction, both built with an eco-friendly insulation core to help keep the van efficient to heat
• A sandwich construction floor with internal bracing, adding structural strength as well as insulation
• An ABS rear panel with flush-fitting LED light clusters and a high-level brake light built in
• An external sunroof surround and chrome detailing to the front grille
• Pre-installed mounting points for a rear bike rack, so you can add one without drilling into the bodywork later
• A Hartal ‘Evolution’ habitation door with an integrated step
• Remote controlled central locking to the habitation door
• A large rear garage with double access doors, giving you room to store bikes, chairs and outdoor gear
• 12V and 230V outlets in the rear garage, plus exterior 230V/12V sockets with a TV outlet and inlet
• Exterior gas locker storage
• A 150-watt solar panel with an Intelligent Battery Sensor (IBS), which monitors your battery’s condition and helps keep it topped up while you’re on site
• Tinted, double-glazed windows throughout
• A front skyview window above the cab, bringing extra natural light into the overcab area
• Full-length exterior graphics

Interior

• Aluminium internal wall construction to help distribute heat evenly through the van
• Ventilated wall covering that helps stop condensation building up and adds a sound-proofing effect
• Ventilated overhead cabinets and angled ventilation boards with cable trays, working together to keep air and heat circulating evenly
• A thermal heating wall between the cab and the living area, so the heat you generate stays where you want it
• Heating convectors built into the door step and energy-efficient windows with polyurethane frames and built-in ventilation
• An engineered swivelling travel seat base for the cab seats
• Integrated blinds to the cab windows, plus smooth-action blinds with flyscreens across every window and the habitation door, so you can let air in without letting insects in
• A centre console above the cab with extra storage and spotlights
• A sound-insulating soft ceiling
• An electrically operated drop-down bed above the front lounge, handy if you want a fifth sleeping option without permanently losing lounge space
• A padded imitation suede headboard with built-in lighting
• Superior ‘Baltimore’ leather to the cab and habitation seats, finished in the ‘Atlas’ wood colour scheme
• New curved upper locker doors in ‘Cashmere’
• Matt black finish furniture handles and domestic-style floor covering
• Luxurious deep pile, stain-resistant loose lay carpets
• Colour-coordinated sockets and switches with matt black surrounds
• A lightweight free-standing table with its own storage area
• Easy-access aluminium lift-up bed frames, gas strut supported with sprung beech slats, and a luxurious mattress on the fixed beds
• A luxury voile panel to the bedroom window and a concertina room divider between the kitchen and bedroom, so you can close off the bedroom for privacy or extra warmth

Kitchen

• Contemporary glass kitchen locker doors with domestic-style soft close hinges
• New domestic-style kitchen worktops
• Acrylic kitchen splashback
• Drawer storage with a travel lock mechanism, so drawers stay shut on the move, plus under-counter pull-out storage trays
• Integrated waste bins and increased kitchen storage over previous models
• A round stainless steel underslung sink with a worktop bowl infill, so you get extra worktop space when the sink isn’t in use
• Matt black kitchen tap and an under-locker integrated extractor fan
• Thetford oven and a 2-burner domestic-style gas hob
• A microwave oven within a flush-fitting housing unit
• LED touch-sensitive dimmable lighting under the worktops and lockers, for ambience as much as practicality
• A Thetford electronic fridge with a separate freezer compartment

Bathroom

• A luxurious domestic-style square shower cubicle with a chrome waste and LED downlight
• A shower mixer tap and matt black finish bathroom fittings throughout
• A Thetford swivel toilet with electric flush and a wheeled waste container, so emptying it is straightforward
• A modern vanity worktop design with a matt black vanity tap, a contemporary under-counter mounted vanity bowl and a mirrored vanity unit

Electrical

• A Smart D touchscreen control panel with remote connection, so you can check your van’s systems from your phone
• New 150-amp lithium battery, giving you more usable power for longer off-grid stays than a standard leisure battery
• A 12-volt system with battery charger and mains transformer
• Indirect dimmable LED lighting, cargo space lighting and LED reading spotlights
• A 25-metre mains connection lead
• USB charging points and a wireless mobile phone charging station
• An awning strip light and Wi-Fi with a roof antenna, so you can stay connected on site

Audio and Entertainment

• DAB radio and a premium sound system
• A dedicated TV station with 230V, 12V, satellite and aerial sockets
• A Status 570 TV aerial with integrated AM/FM/DAB reception and a diplexer, so you don’t need separate aerials for radio and TV

Plumbing and Heating

• Alde wet central heating and hot water, with a 5-year glycol heating fluid. It’s the same principle as radiators at home, so heat spreads evenly through the van rather than blowing hot air from one spot
• 12V circulation pumps and AGS II waterborne underfloor heating
• Roof-mounted Dometic Freshjet air conditioning
• Heating elements built into the fresh and waste water tanks, part of what makes the van fully winterised for year-round use
• An 87-litre fresh water tank and a 90-litre waste water tank

Safety and Security

• Optical smoke alarm, carbon monoxide detector and gas leak indicator
• Ground fault circuit breaker and a collision sensor for the gas system, cutting the gas supply automatically if the van is involved in a collision
• European Whole Vehicle Type Approved (EWVTA), confirming the van meets EU-wide vehicle approval standards
• EN1645 Grade 3 classification for heating and insulation, cold chamber tested. In plain terms, that’s the industry’s toughest rating for how well a motorhome holds heat and stays insulated in cold weather

Frequently Asked Questions

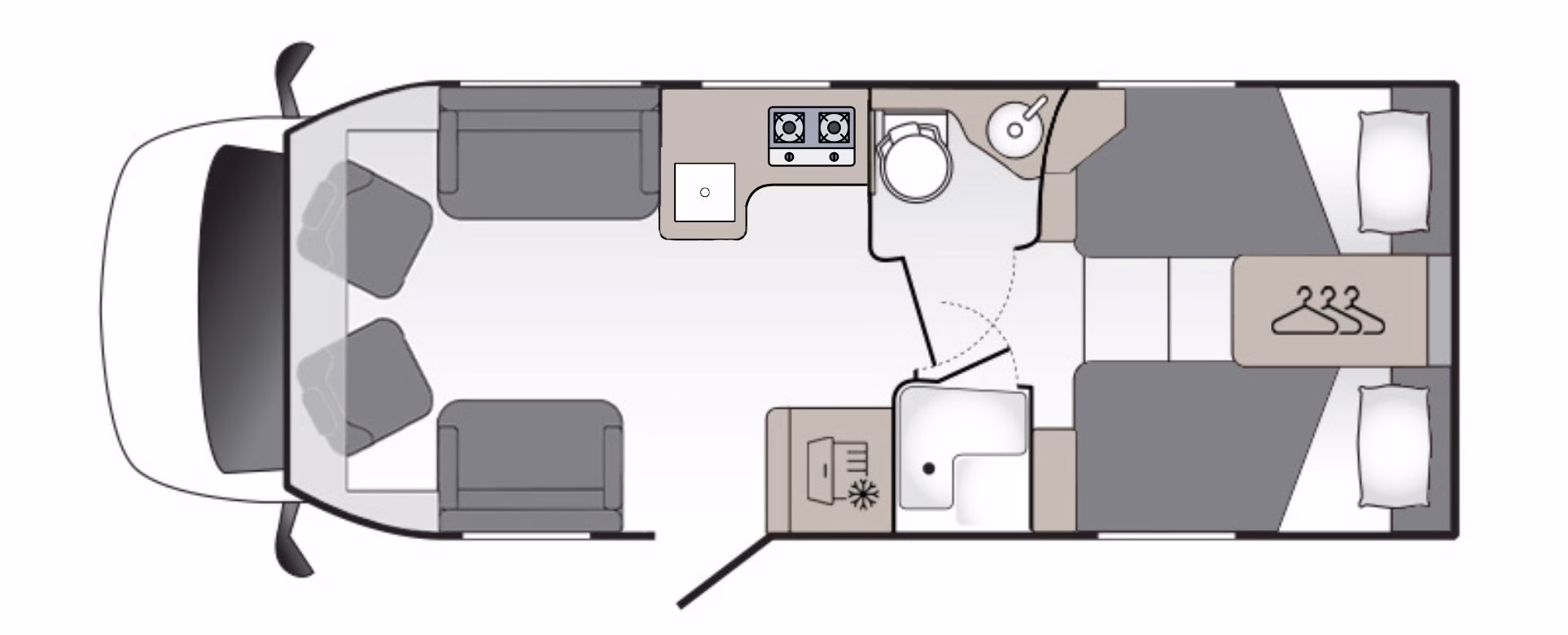

How many berths does the Coachman Travel Master 565 have? The Travel Master 565 sleeps 4, with twin beds at the rear and an electrically operated drop-down bed above the front lounge for extra flexibility.

What is the Travel Master 565 built on? It’s built on a Mercedes-Benz Sprinter base with a 170hp engine, 9-speed automatic gearbox and an AL-KO chassis, giving it an MTPLM (Maximum Technically Permissible Laden Mass) of 4500kg.

What heating system does the Travel Master 565 have? It has Alde wet central heating and hot water, which warms the van evenly through a network of pipes, much like the radiators in your home, rather than blowing warm air from a single point.

Where can I view the Travel Master 565? You can see the new Travel Master 565 at Raymond James Caravans, Carlyon Road, Atherstone. Contact our team to find out when these vans will be available to view.

Come and See the New Travel Master 565 at Raymond James Caravans

The 2027 Travel Master 565 is a genuine step up for year-round motorhome comfort, and it’s landing at Raymond James Caravans soon.

Part exchange welcome. Come and see it in person at Carlyon Road, Atherstone, or give us a call on 02476 474747 to book your viewing. Finance is available, subject to status.
